Use MySQL Addon in NLPs

Testsigma enables efficient execution of MySQL queries in NLPs using the MySQL Addon. It supports various query types (SELECT, INSERT, UPDATE, DELETE) while maintaining data integrity through a structured approach.

Prerequisite

To begin, set up a MySQL database and configure the necessary tables to store and manage your data effectively. Ensure that the database is accessible from Testsigma, enabling smooth integration and execution of queries within your test automation workflow.

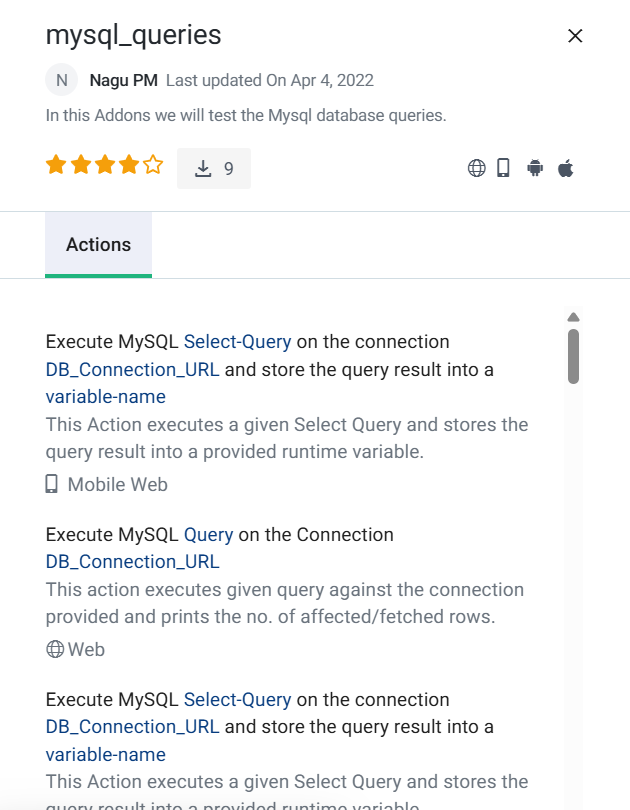

Testsigma has a built-in addon to automate this flow, you can download the addon and use the addon inside your test step. You can find the mysql_queries addon on the addon page. The add-on screenshot is added below:

.

Use Cases

Here are the use cases for the addon, which is required for executing MySQL queries:

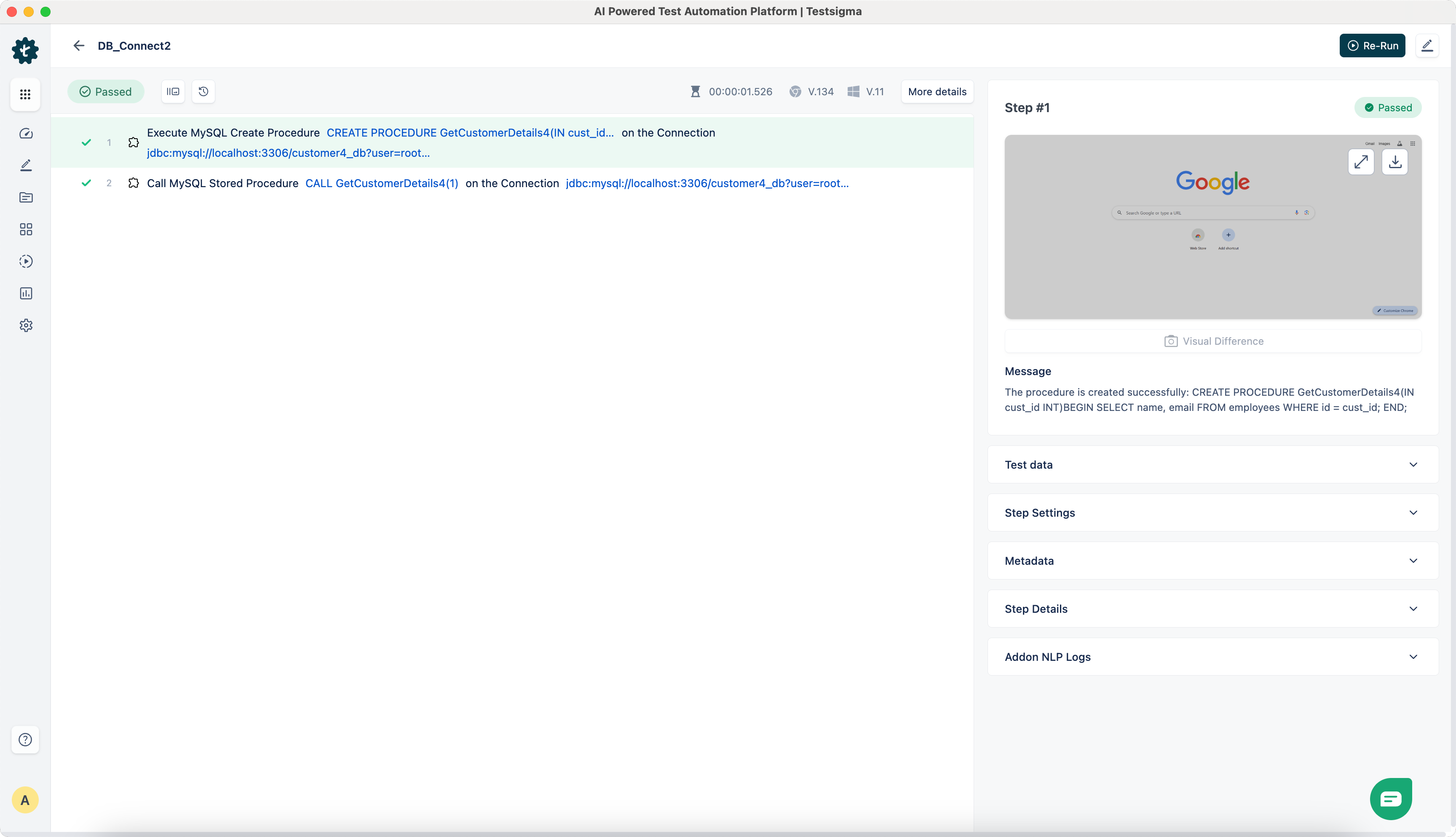

NLP-1 Execute MySQL Create Procedure Query on the Connection DB _ Connection _ URL

Query - Create GetCustomerDetails Stored Procedure

This stored procedure takes a customer ID as an input parameter and returns information such as name, email, and phone number.

CREATE PROCEDURE GetCustomerDetails(IN cust_id INT) BEGIN SELECT name, email, phone FROM customers WHERE id = cust_id; END;

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer4_db?user=root&password=root

NLP-2 Call MySQL Stored Procedure Query on the Connection DB _ Connection _ URL

Query - CALL GetCustomerDetails4(1)

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer4_db?user=root&password=root

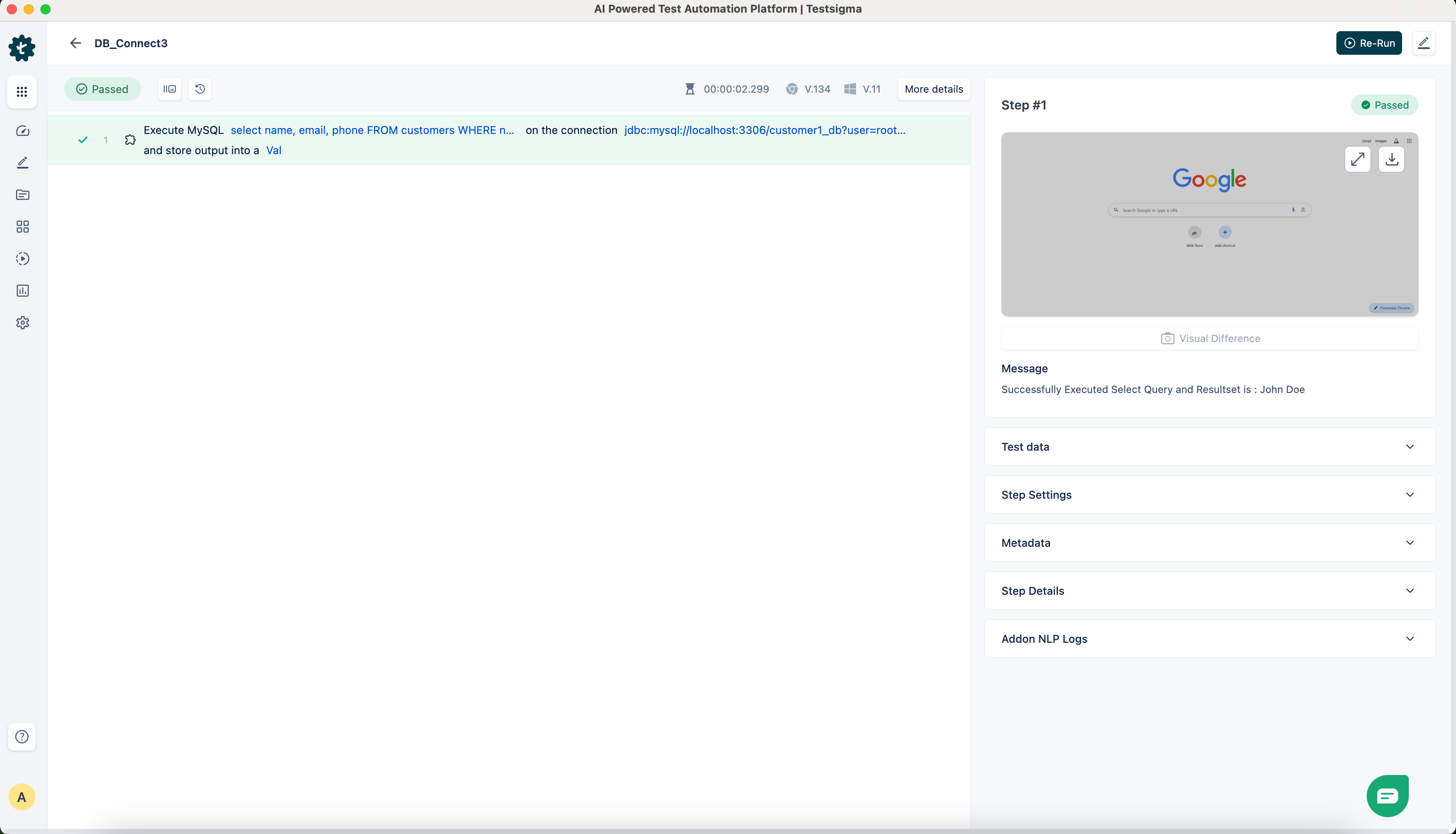

NLP-3 Execute MySQL Query on the Connection DB _ Connection _ URL

Query - select name, email, phone FROM customers WHERE id = 2

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer1_db?user=root&password=root

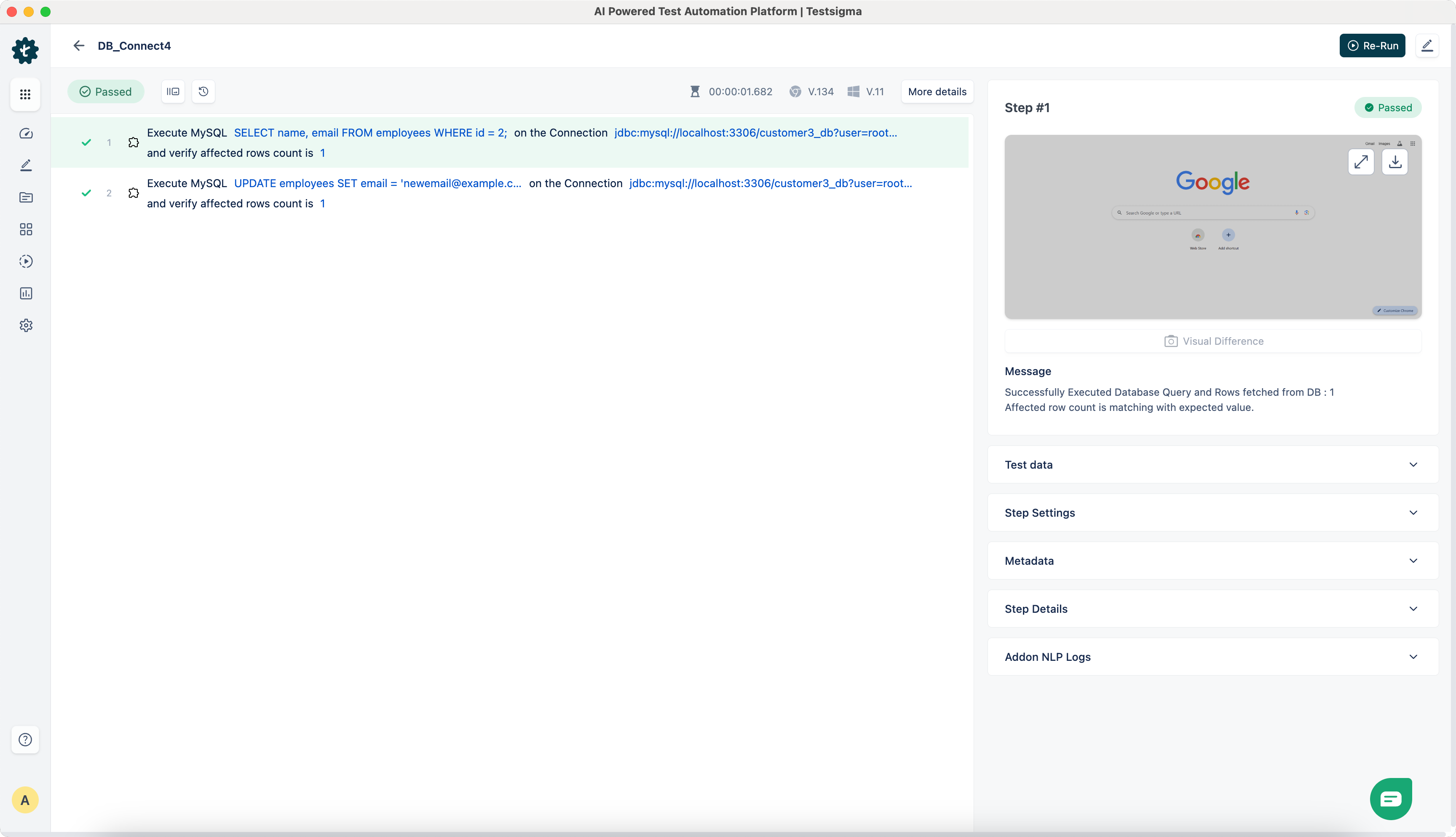

NLP-4 Execute MySQL Query on the Connection DB _ Connection _ URL and verify affected rows count is Row-Count

Query 1 - SELECT name, email FROM customers WHERE id = 2

Query 2 - UPDATE employees SET email = newemail@example.com WHERE id = 2

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer3_db?user=root&password=root

Row-Count - 1

NLP-5 Execute MySQLScriptFile filepath on the Connection DB _ Connection _ URL

employeesTable.sql

CREATE TABLE IF NOT EXISTS employees (
      id INT PRIMARY KEY,
      name VARCHAR(100),
email VARCHAR(100)
);

INSERT INTO employees (id, name, email)
VALUES (1, 'John Doe', 'john.doe@example.com'),
      (2, 'Jane Smith', 'jane.smith@example.com');


SELECT * FROM employees;

filepath - /Users/aruna.sambasivan/Downloads/EmployeeTable.sql

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer2_db?user=root&password=root

NLP-6 Execute MySQL Select-Query on the Connection DB _ Connection _ URL and store output into a variable-name

Select-Query - SELECT name FROM employees WHERE id = 2

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer3_db?user=root&password=root

Variable-name - Test

NLP-7 Execute MySQL Select-Query on the Connection DB _ Connection _ URL and verify output is Expected _ Value

Select-Query - SELECT name FROM employees WHERE id = 2

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer3_db?user=root&password=root

Expected _ Value - $ Test

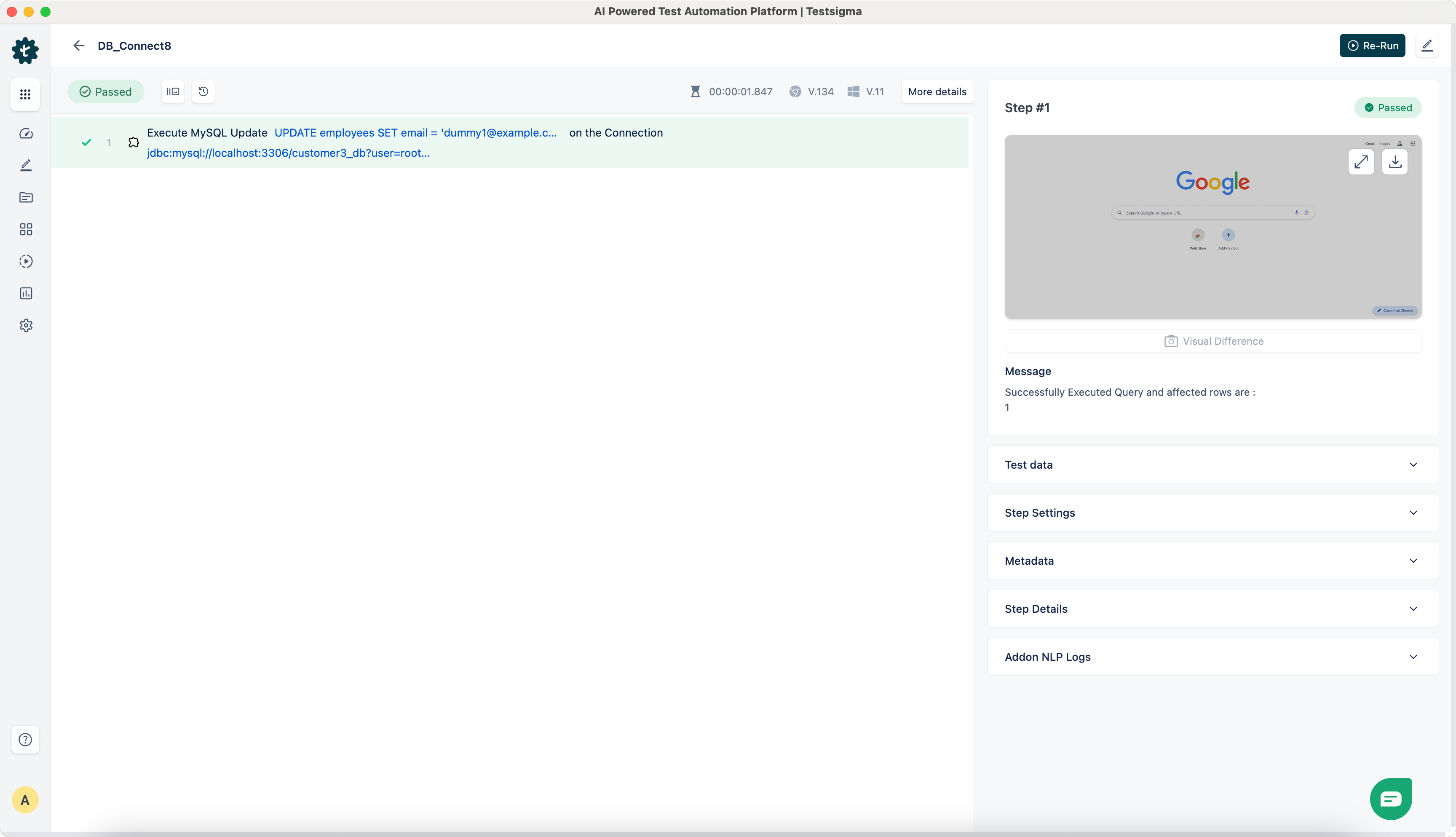

NLP-8 Execute MySQL Update Query on the Connection DB _ Connection _ URL

Query - UPDATE employees SET email = dummy1@example.com WHERE id = 2

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer3_db?user=root&password=root

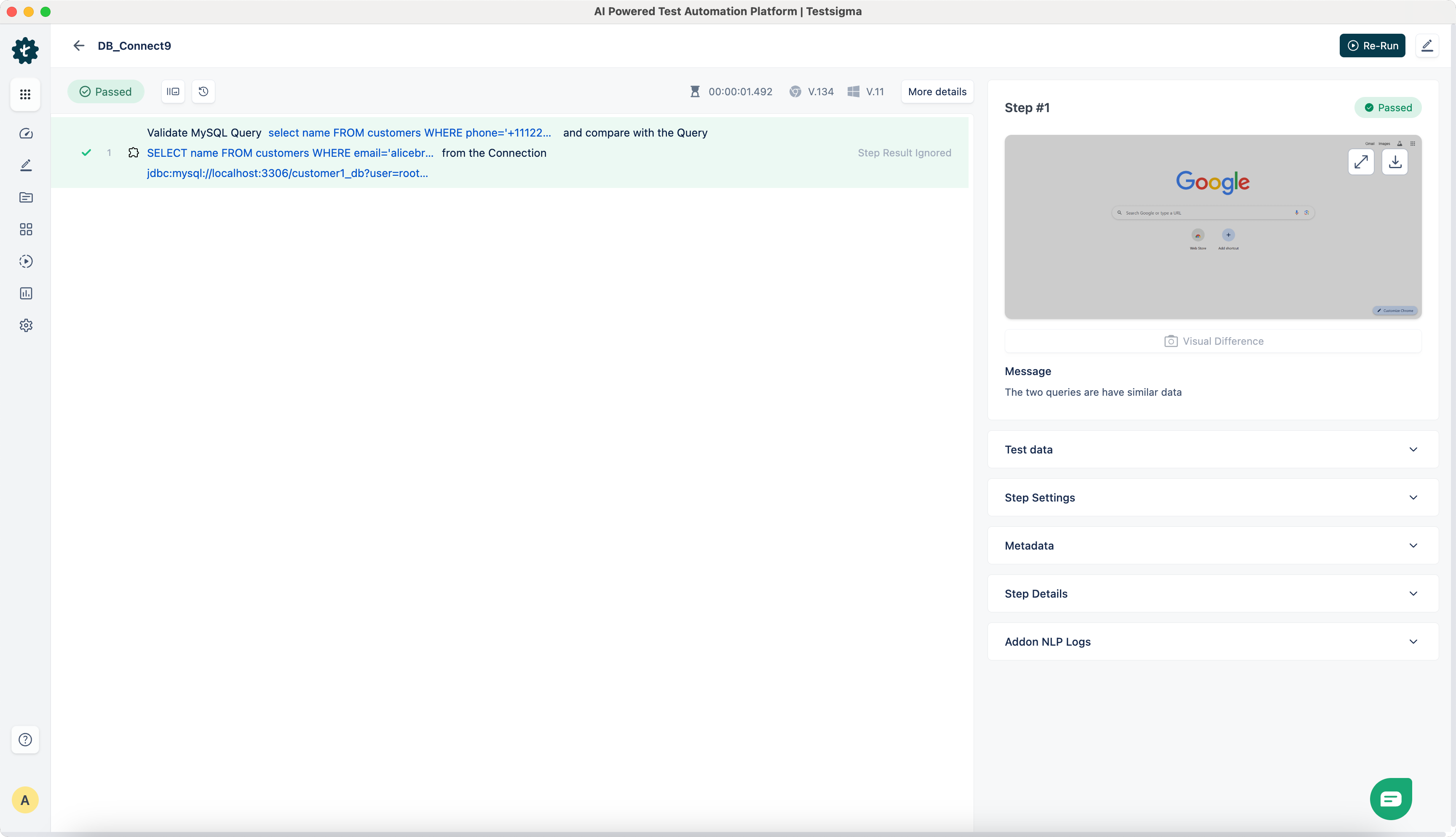

NLP-9 Validate MySQL Query1 and compare with the Query Query2 from the Connection DB _ Connection _ URL

Query 1 - select name FROM customers WHERE phone=+1112223333

Query 2 - SELECT name FROM customers WHERE email = alicebrown@example.com

DB _ Connection _ URL(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer1_db?user=root&password=root

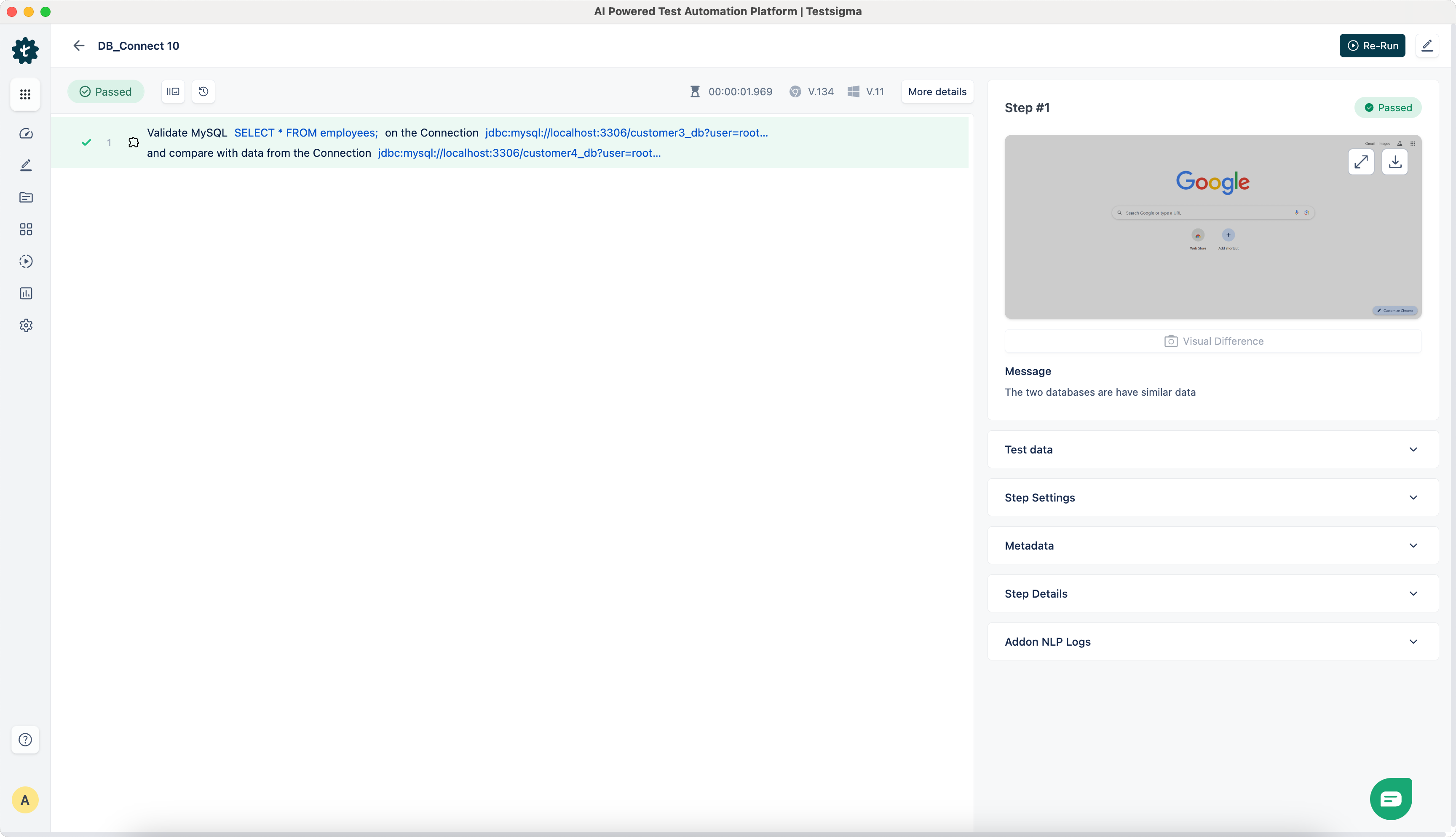

NLP-10 Validate MySQL Query on the Connection DB _ Connection _ URL1 and compare with the data from the Connection DB _ Connection _ URL2

Creating 2nd Database

CREATE DATABASE IF NOT EXISTS employees_db;

USE employees_db;

CREATE TABLE IF NOT EXISTS employees (
      id INT PRIMARY KEY,
      name VARCHAR(100),
email VARCHAR(100)
);

INSERT INTO employees (id,name, email) VALUES
(1,'John Doe', 'johndoe@example.com'),
      (2,'Jane Smith', 'janesmith@example.com'),
      (3,'Alice Brown', 'alicebrown@example.com');

CREATE TABLE IF NOT EXISTS customers (
      id INT PRIMARY KEY AUTO_INCREMENT,
      name VARCHAR(100) NOT NULL,
email VARCHAR(100) NOT NULL UNIQUE,
phone VARCHAR(15)
);

INSERT INTO customers (name, email, phone) VALUES
('John Doe', 'johndoe@example.com', '+1234567890'),
      ('Jane Smith', 'dummy@example.com', '+0987654321'),
      ('Alice Brown', 'alicebrown@example.com', '+1112223333');

Query - SELECT * FROM employees;

DB _ Connection _ URL1(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer3_db?user=root&password=root

DB _ Connection _ URL2(jdbc:mysql://:/<database_name>?user=&password=) - jdbc:mysql://localhost:3306/customer4_db?user=root&password=root
