Element Learning (Using Test Recorder)

For applications built on UWP, WinForms, WPF, and Classic Windows, you can provide the app path and selectively capture elements using Test Recorder. This article discusses learning and capturing elements for Windows (Lite) applications in Testsigma.

Prerequisites

Before you begin, ensure that:

1. You have referred to the documentation on creating projects.
2. You have referred to the documentation on creating applications.
3. You have referred to the documentation on test recorder.
4. You have referred to the documentation on setting up Testsigma Agent setup.
5. You have any Windows app to capture elements.

Steps to Learn Windows (Lite) Elements Using Test Recorder

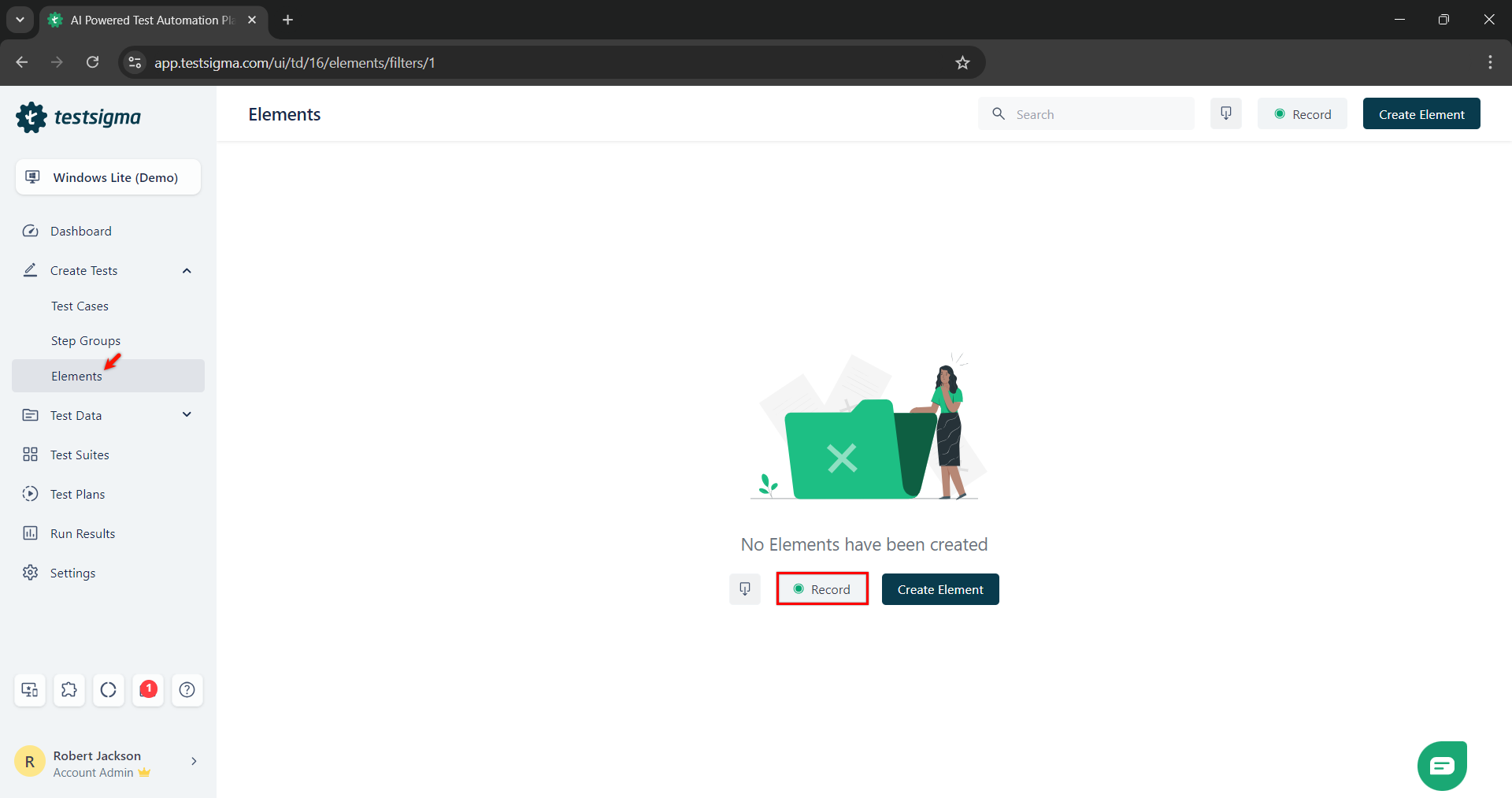

1. From the left navigation bar, go to Create Tests > Elements and click Record.

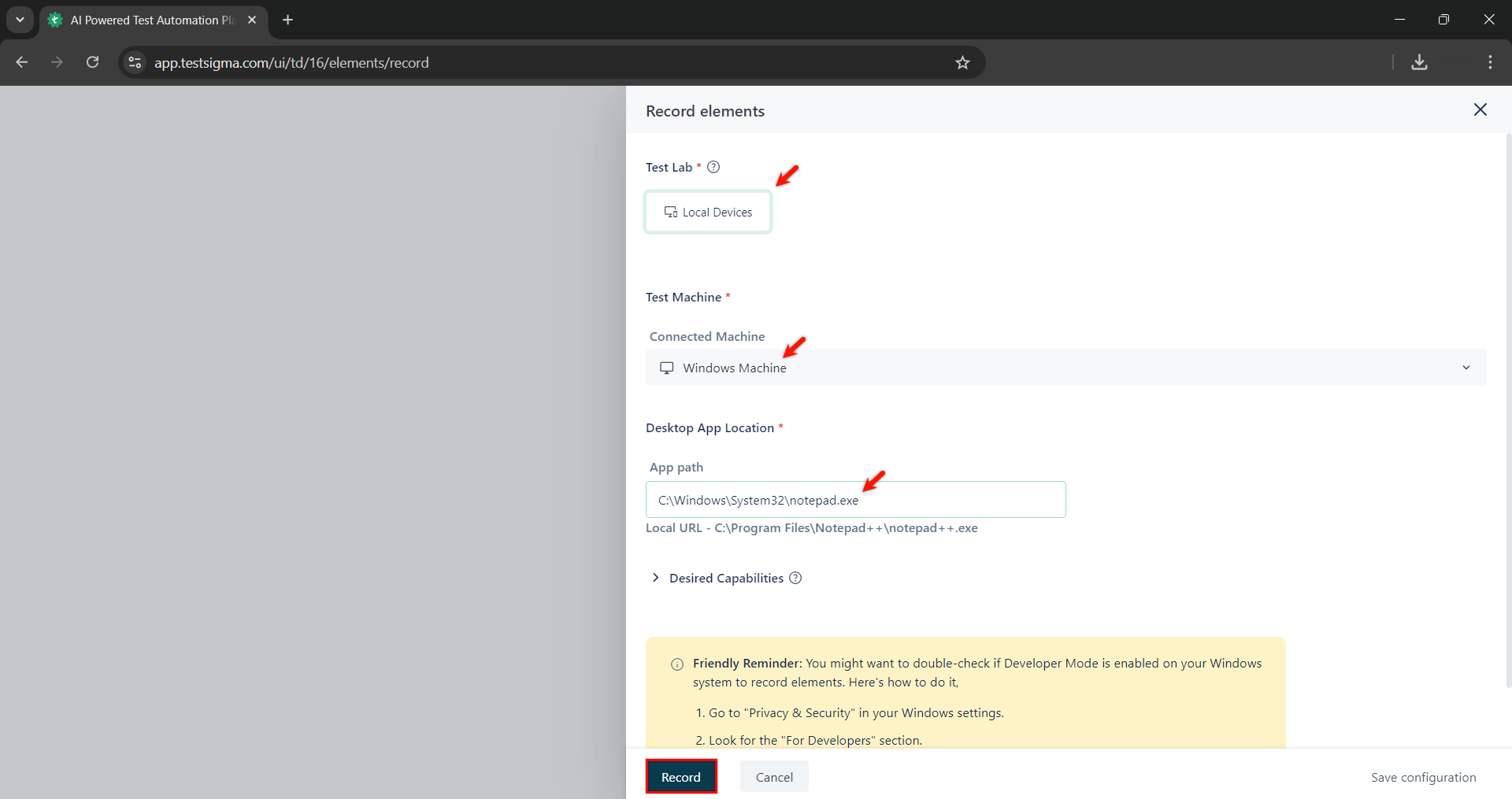

2. On Record Elements overlay, select Local Test Machine, provide App path and click Record.

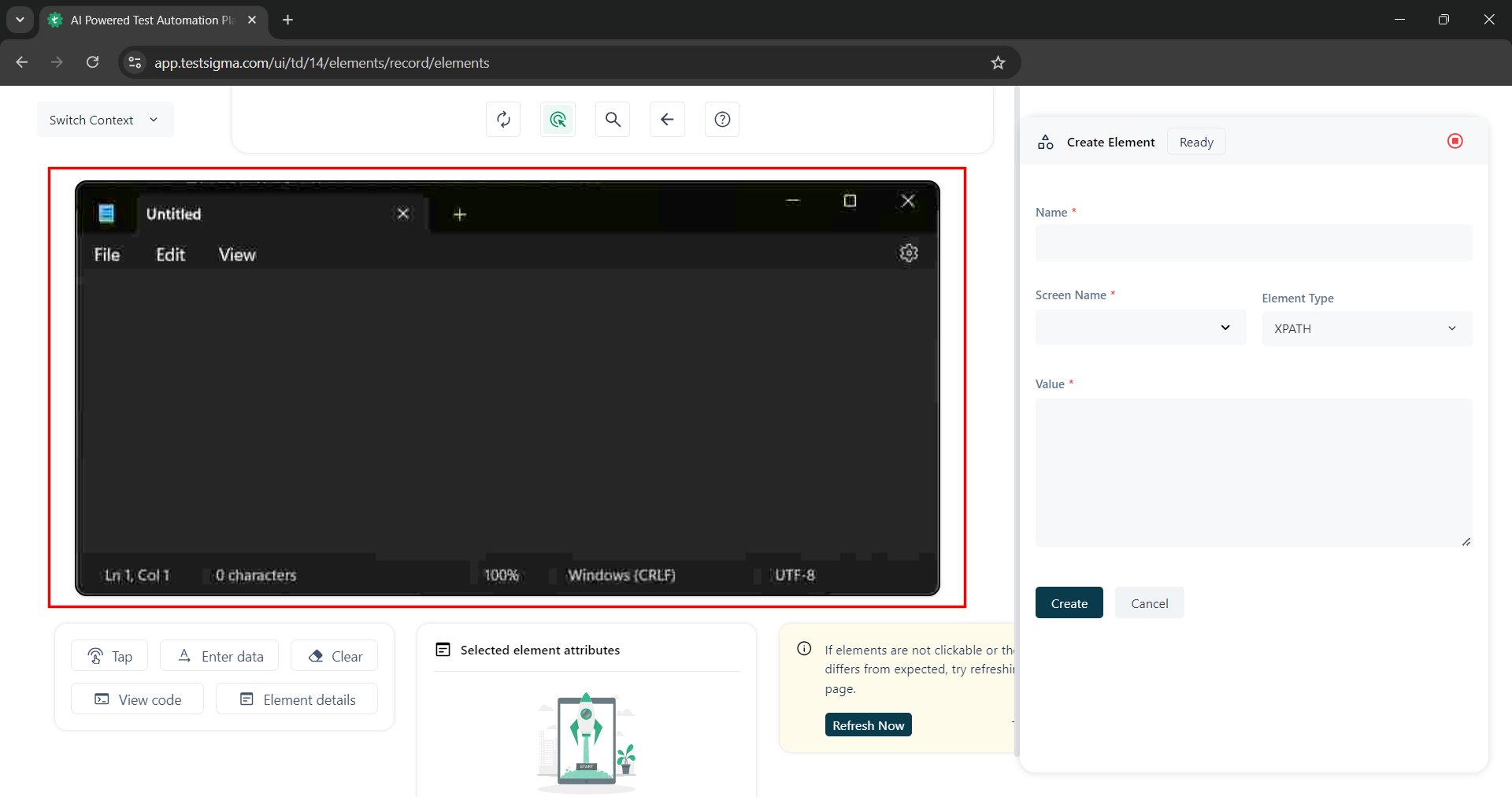

3. Wait for the app to load fully.

4. Once the app is loaded, click on the element you want to capture.

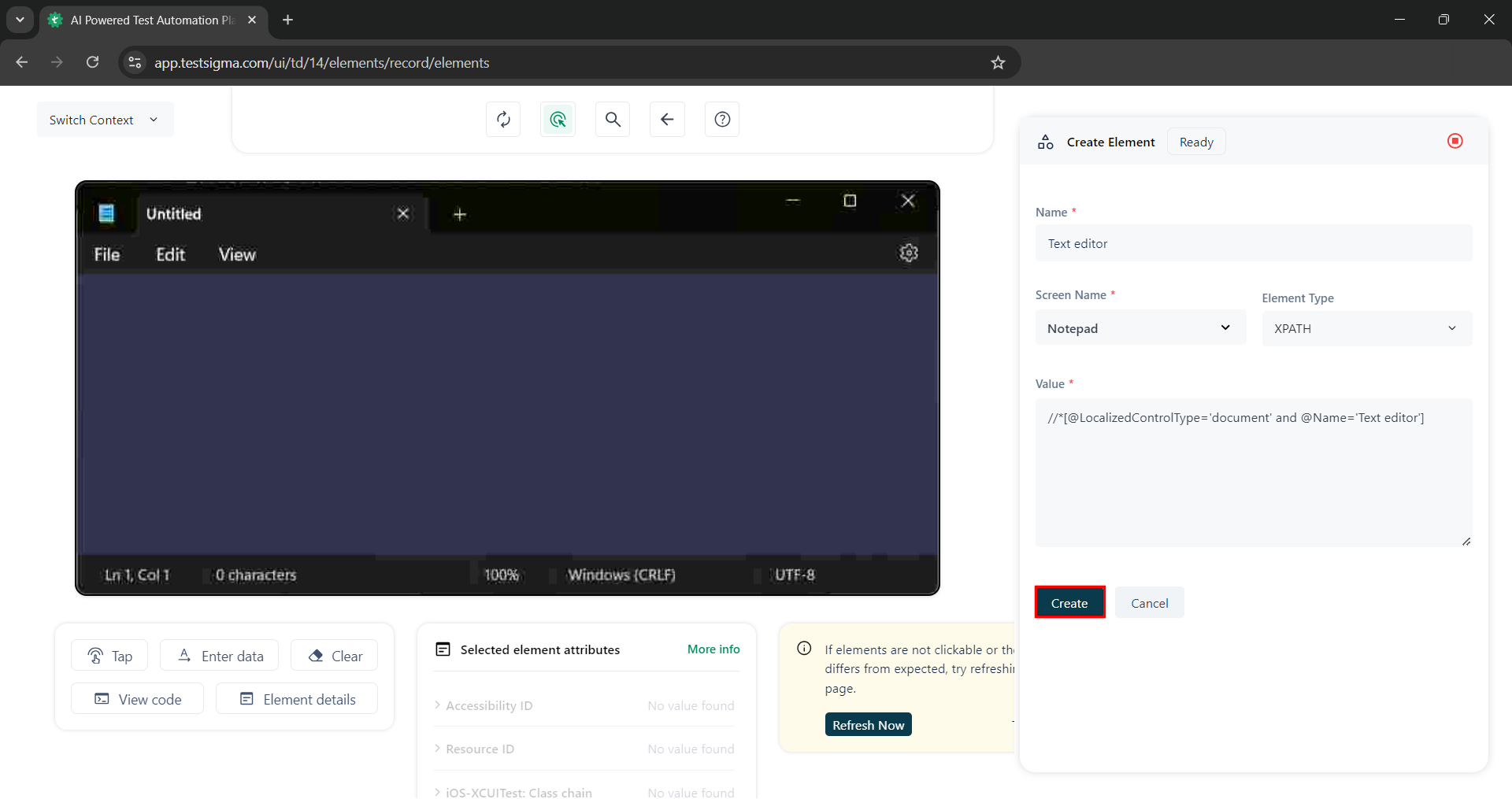

5. On the Create Element section, validate the Name, Screen Name, Element Type, and the Value.



6. Click Create.

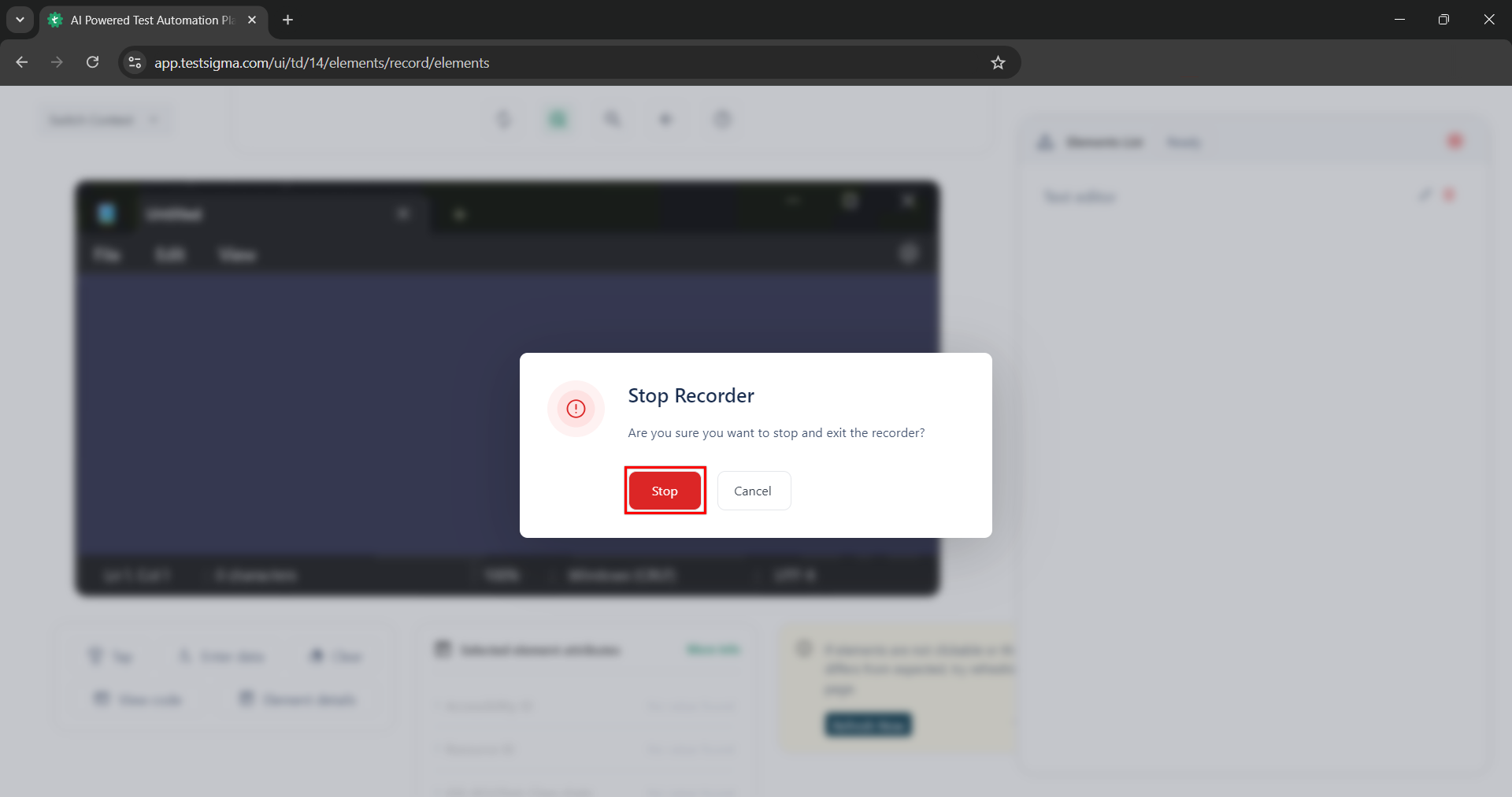

7. Stop the recorder to close the session.
